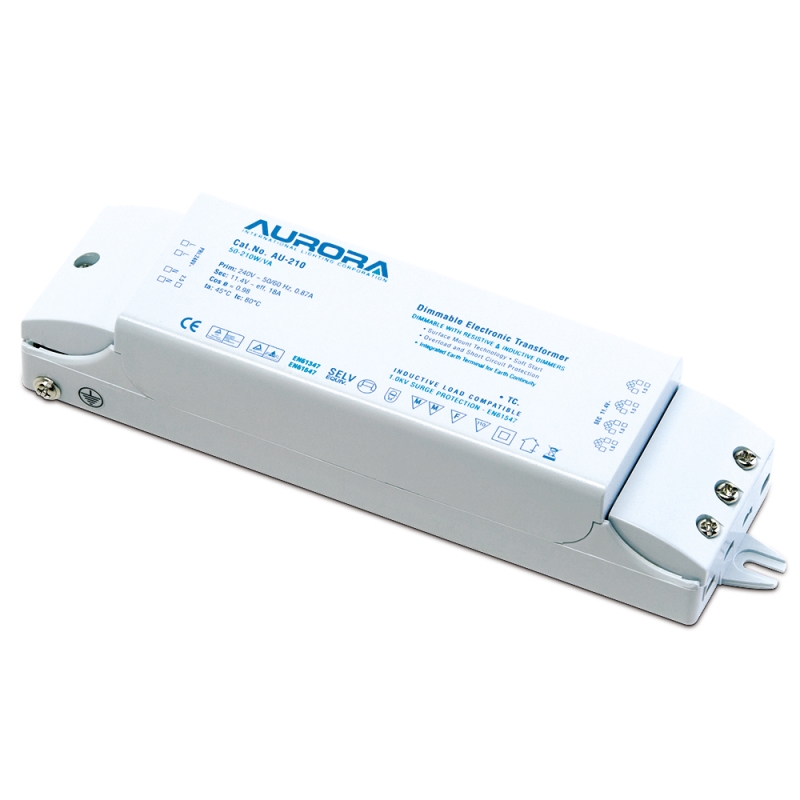

50-210W/VA Electronic Transformer

Spec Sheet


  • 210W/VA electronic transformer
  • Fully dimmable with resistive and inductive dimmers
  • Loop-in, loop-out primary wiring terminals
  • Integrated earth terminal for earth continuity
  • No junction box required
  • Secondary wiring terminals - 4 outputs
  • Maximum load on one output - 105VA
  • Auto reset thermal protection
  • Short circuit and overload protection
  • 1.0kV SURGE PROTECTION EN 61547
  • Safety compliance EN 61347
  • EMC compliance - EN 55015, EN 61000, EN 61547
  • 3 Year Warranty - see www.auroralighting.com for details

Width (mm)
48
Input Voltage (Min)
220
Input Voltage (Max)
250
Input Voltage Type
AC
Height (mm)
30
Length (mm)
163
