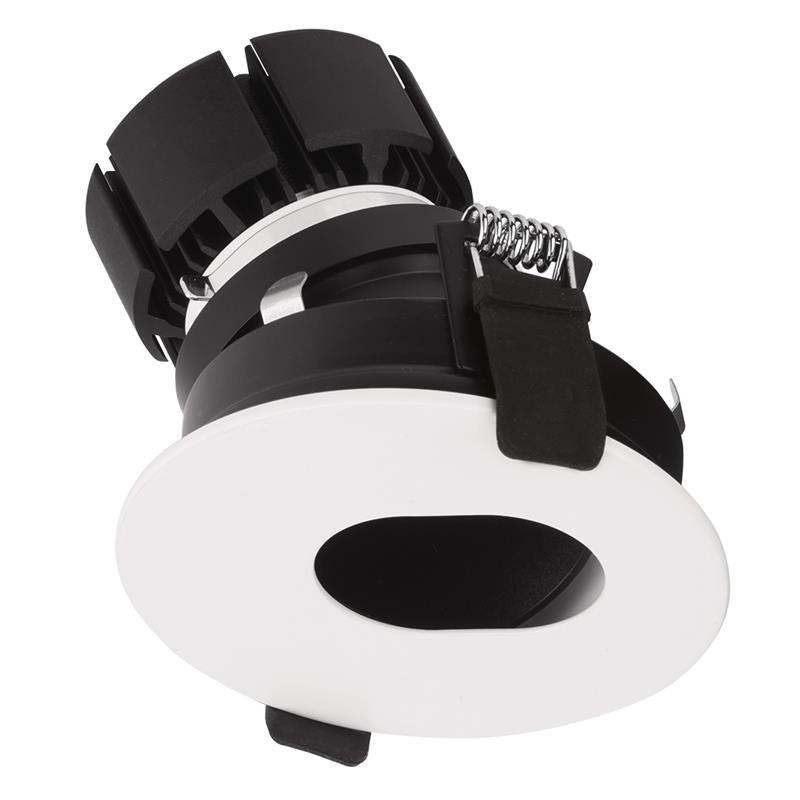

Ecylps 8W Pin-Hole Adjustable Downlight



Part of the Eclyps range, the 8W Pinhole adjustable COB LED downlight is ideal for commercial and hospitality lighting installations, including circulation and break out areas creating a subtle dark light effect with a lumen package of 340lm. Supplied with CRI80 as standard and SDCM<3, clients can also opt for CRI90 options to further enhance colour quality of the installation. Beam angles available are 20° and 30°. L70 is 50,000 hrs. 5 year warranty.

SKU Code Wattage Lumens Colour Temperature Beam Angle
AU-EC8PA2DTAK/30 8 340 3000 20
AU-EC8PA2DTAK/40 8 340 4000 20
AU-EC8PA2EMNDAK/30 8 340 3000 20
AU-EC8PA2EMNDAK/40 8 340 4000 20
AU-EC8PA2NDAK/30 8 340 3000 20
AU-EC8PA2NDAK/40 8 340 4000 20
AU-EC8PA3DTAK/30 8 340 3000 30
AU-EC8PA3DTAK/40 8 340 4000 30
AU-EC8PA3EMNDAK/30 8 340 3000 30
AU-EC8PA3EMNDAK/40 8 340 4000 30
AU-EC8PA3NDAK/30 8 340 3000 30
AU-EC8PA3NDAK/40 8 340 4000 30
Technical Information
Lifetime (Hours)
50000
Power Factor
0.5
IP Rating
IP20
Overall Diameter (mm)
96
Recess Depth (mm)
102
Cutout Diameter Min. (mm)
85
Cutout Diameter Max. (mm)
85
