Fire Rated Downlighting
Energy
Spec Sheet

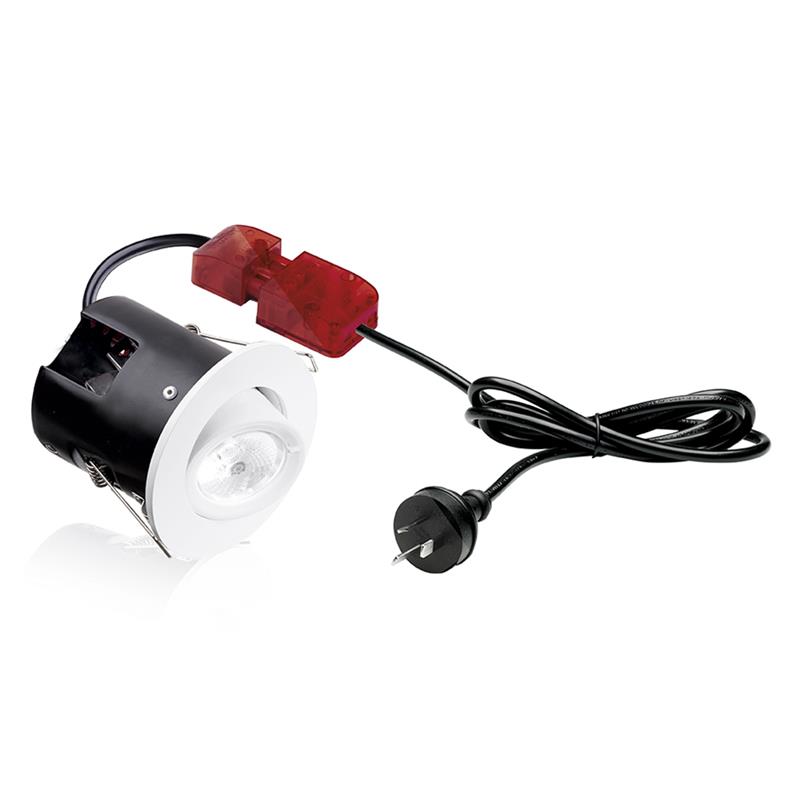

m10™ 10W Adjustable Dimmable Fire Rated Downlight



Adjustable, integrated, fire rated 10W LED downlight with driver-on-board and high voltage, single source LED chip. Fitted with CrystalCool™ thermal management.

Features & Benefits
Rated to 30, 60 & 90 minute fire ceilings
United Kingdom Patent Application No. 1405622.0
icDOB™ (Driver on Board) for maximum reliability and lifetime - NO SEPARATE DRIVER REQUIRED
Crystalcool™ next generation thermal management offers brighter light for longer
Mains voltage single source HVLED™ chip eliminates overshadowing and offers controlled dimming
Patented LEDchroic™ lens provides halogen appearance with LED efficiency, anti-glare and precise beam control
40° lens supplied (not interchangeable)
FastFix™ rapid install system with 1.5m flex and plug fitted
Twist&Lock™ IP65 Interchangeable white bezel included
BS EN 1365-2:2000 (Fire resistance)
BS EN ISO 140-3:1995 & BS EN ISO 140-6:1998 (Acoustics)
BS EN 13141-1:2004 (Air leakage)
(L70) at a 40,000 hour lifetime
5 year warranty – see auroralighting.com for details
Read More
Technical Information
Lifetime (Hours)
40000
Power Factor
0.9
IP Rating
IP20
Overall Diameter (mm)
98
Height (mm)
111
Recess Depth (mm)
110
Cutout Diameter Min. (mm)
85
Cutout Diameter Max. (mm)
85
  • CE
    CE
  • Earth
    Earth
  • Nemko
    Nemko
  • SAA
    SAA
  • 240V
    240V
  • RoHS
    RoHS
  • Equipment for Indoor Use
    Equipment for Indoor Use
  • LED Light Source
    LED Light Source
  • IP20
    IP20
  • Dimmable
    Dimmable
