Fire Rated Downlighting
Energy
Spec Sheet

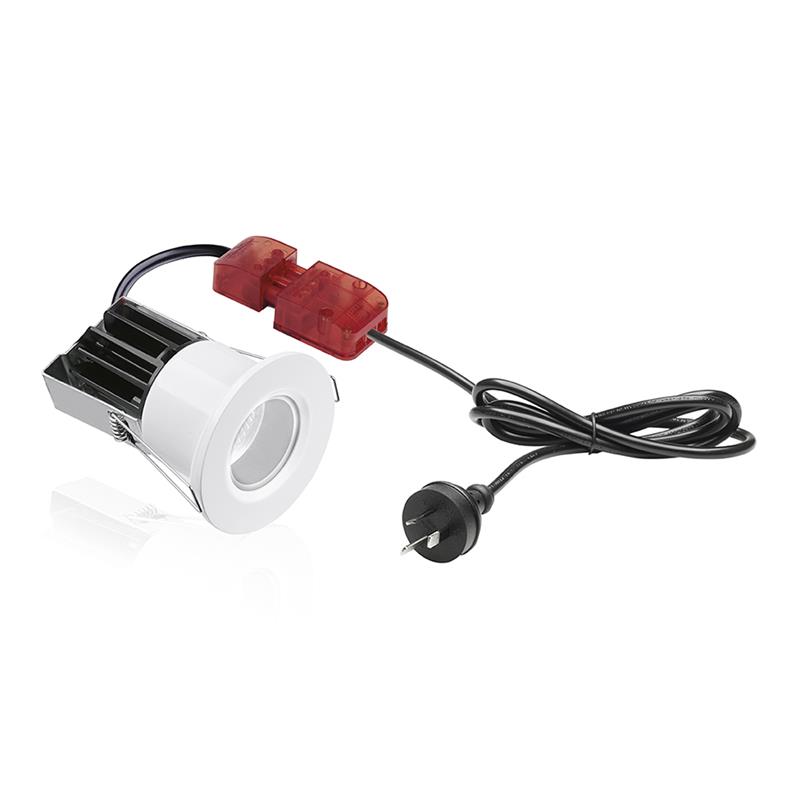

m10™ 10W IP65 Baffle Dimmable Fire Rated Downlight



Features & Benefits
5 year warranty – see auroralighting.com for details
United Kingdom Patent Application No. 1405622.0
icDOB™ (Driver on Board) for maximum reliability and lifetime - NO SEPARATE DRIVER REQUIRED
Crystalcool™ next generation thermal management offers brighter light for longer
Mains voltage single source HVLED™ chip eliminates overshadowing and offers controlled dimming
Patented LEDchroic™ lens provides halogen appearance with LED efficiency, anti-glare and precise beam control
40° lens supplied, interchangeable 24° & 60° lenses sold separately
FastFix™ rapid install system with 1.5m flex and plug fitted
Twist&Lock™ IP65 Interchangeable white bezel included
BS EN 1365-2:2000 (Fire resistance)
BS EN ISO 140-3:1995 & BS EN ISO 140-6:1998 (Acoustics)
BS EN 13141-1:2004 (Air leakage)
BS EN 13141-1:2004 (Air leakage)
5 year warranty – see auroralighting.com for details
Read More
Technical Information
Lifetime (Hours)
40000
Power Factor
0.9
IP Rating
IP65
Overall Diameter (mm)
88
Height (mm)
105
Recess Depth (mm)
105
Cutout Diameter Min. (mm)
65
Cutout Diameter Max. (mm)
72
  • Earth
    Earth
  • Nemko
    Nemko
  • RoHS
    RoHS
  • IP65
    IP65
  • LED Light Source
    LED Light Source
  • 240V
    240V
  • Dimmable
    Dimmable
  • CE
    CE
  • Equipment for Indoor Use
    Equipment for Indoor Use
