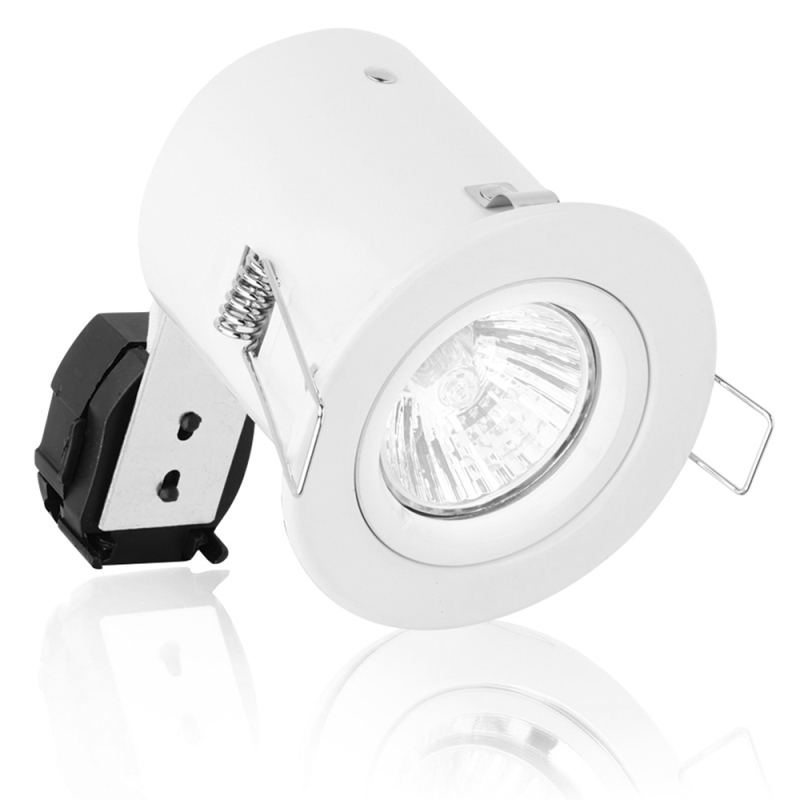

MR16 Fire Rated Downlight

Integrated intumescent material completely seals the downlight and cut-out in the event of a fire. The A2-DLL681 features reduced recess depth for shallow ceiling voids and is intended for use with aluminium reflector lamps only. Registered Community Design 390612-0001/2/3 and UK Patent GB2426321.

Technisches Datenblatt


  • Requires a suitable 12V Constant Voltage Transformer (Not Included)
  • Integrated intumescent material completely seals the downlight and cut-out in the event of a fire
  • Tested in 30, 60 & 90 minute fire rated ceilings
  • Tested to BS476 Part 21
  • Tested in 30, 60 & 90 minute fire rated ceilings
  • Tested to BS EN ISO 140-3:1995 & BS EN ISO 140-6:1998 (Acoustics) confirming that they maintain the ability for an internal or separating floor to provide sound insulation
  • UK Patent GB2426321

Eingangsspannung (Min)
12
Eingangsspannung (Max)
12
Eingangsspannung
AC
Ausschnitt Durchmesser Min. (mm)
72
Einbautiefe (mm)
105
Höhe (mm)
106
Lebensdauer (Stunden)
3000
Dimmbar
Ja
Overall Diameter (mm)
85
