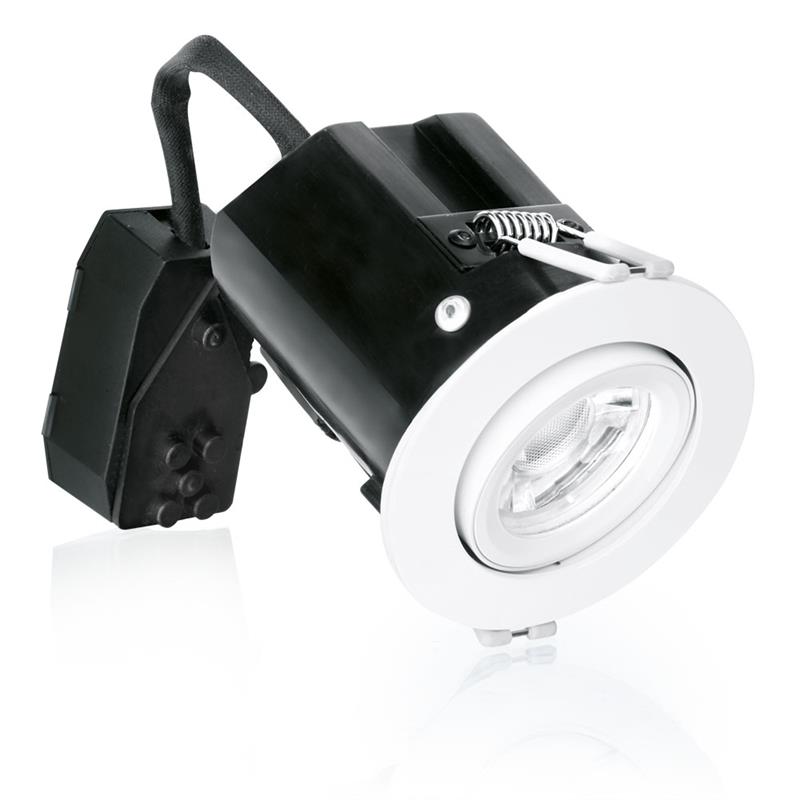

Isored - Adjustable 5W GU10 Dimmable Recessed downlight pack

Ideal for new or renovation projects, the Isored range is designed to guarantee perfect airtightness of ceilings. The unique shape of the pot and flexible connection tab ensure easy installation in standard cut-outs even under all types of insulation and without deterioration. Equipped with a quick-release connector that can be used without tools, it is available with an ICE 5W LED lamp for maximum energy savings.

Hoja de especificaciones


  • Recessed airtight LED downlight - Building regulation compliant
  • Suitable for all types of insulation materials (fiber / blown / sprayed) and vapour barrier tarpaulin
  • aluminium +/-20° adjustable bezel for an elegant finish
  • Supplied with a quick-release and plug-in terminals connector
  • Flexible connection tab for easy spot insertion
  • Pack supplied with ICE™ 5W GU10 lamp
  • White & Satin Nickel finish options
  • 2 year warranty
Código SKU Potencia Lúmenes Temperatura de color (K) Índice crómatico
AL-13120ABDS 5 500 3000 80
AL-13120DS 5 500 3000 80
AL-13121ABDS 5 520 4000 80
AL-13121DS 5 520 4000 80

Voltaje de entrada (mín.)
220
Voltaje de entrada (máx.)
240
Factor de potencia
0.5
Tipo de voltaje de entrada
AC
Clasificación de la IP
IP20
Diámetro de corte mín. (Mm)
75
TAMAÑO DE CORTE (mm)
75
Profundidad de empotramiento(mm)
98
Altura (mm)
98
Length (mm)
130
Vida útil (horas)
25000
Regulable
Yes
Orientación
Orientable
Diámetro total (mm)
86
