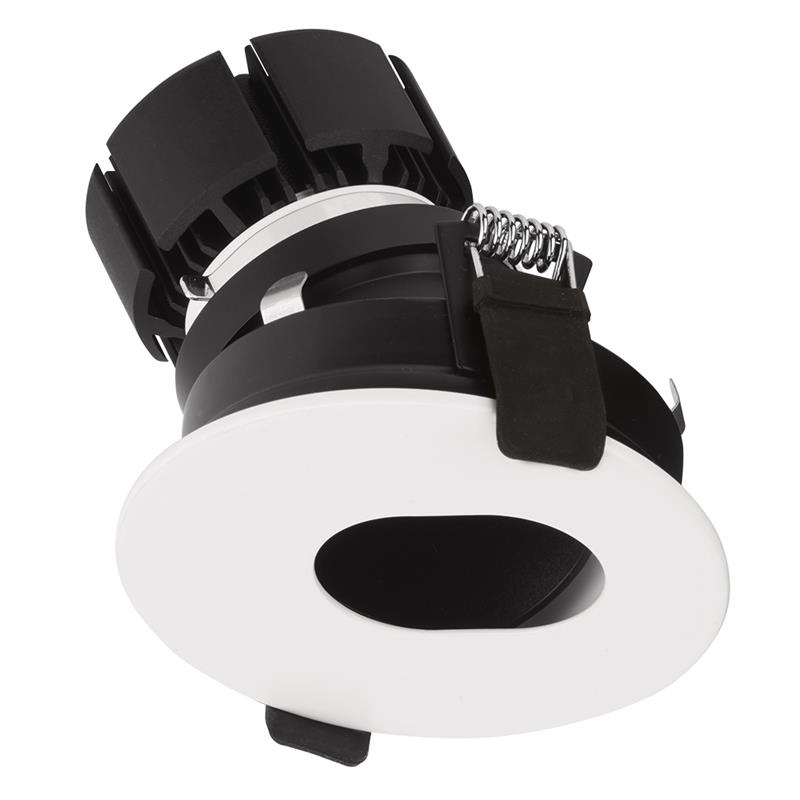

Ecylps 14W Pin-Hole Adjustable Downlight
Part of the Eclyps range, the 14W adjustable COB LED downlight is ideal for commercial lighting installations, including circulation and break out areas with a lumen package of 560lm. Supplied with CRI80 as standards and SDCM<3, clients can also opt for CRI90 options to further enhance colour quality of the installation. Beam angles available are 20° and 30°. L70 is 50,000 hrs. 5 year warranty.
| SKU Code | Wattage | Lumens | Colour Temperature | Beam Angle | Finish Colour |
|---|---|---|---|---|---|
| AU-EC14PA2NDAK/30 | 14 | 560 | 3000 | 20 | White |
| AU-EC14PA2NDAK/40 | 14 | 560 | 4000 | 20 | White |
| AU-EC14PA3NDAK/30 | 14 | 560 | 3000 | 30 | White |
| AU-EC14PA3NDAK/40 | 14 | 560 | 4000 | 30 | White |
| AU-EC14PA2EMNDAK/30 | 14 | 560 | 3000 | 20 | White |
| AU-EC14PA2EMNDAK/40 | 14 | 560 | 4000 | 20 | White |
| AU-EC14PA3EMNDAK/30 | 14 | 560 | 3000 | 30 | White |
| AU-EC14PA3EMNDAK/40 | 14 | 560 | 4000 | 30 | White |
| AU-EC14PA2DTAK/30 | 14 | 560 | 3000 | 20 | White |
| AU-EC14PA2DTAK/40 | 14 | 560 | 4000 | 20 | White |
| AU-EC14PA3DTAK/30 | 14 | 560 | 3000 | 30 | White |
| AU-EC14PA3DTAK/40 | 14 | 560 | 4000 | 30 | White |
Downloads
Technical Information
Lifetime (Hours)
50000
Power Factor
0.8
IP Rating
IP20
Overall Diameter (mm)
96
Height (mm)
96
Recess Depth (mm)
96
Cutout Diameter Min. (mm)
85
Cutout Diameter Max. (mm)
90
